Structural Engineering Lab Equipment

Supplementary Set Pulley Blocks: extends the scope of experiments which can be performed with Fundamentals of Static. comparison of different pulley blocks…

Warren truss beams are frequently used on steel constructions.Experiments with the truss Warren Girder are mounted on the frame of the unit.

Bearing Friction: provides experiments relating to friction on sliding and rolling bearings; bearing shells in various materials serve as sliding bearings.

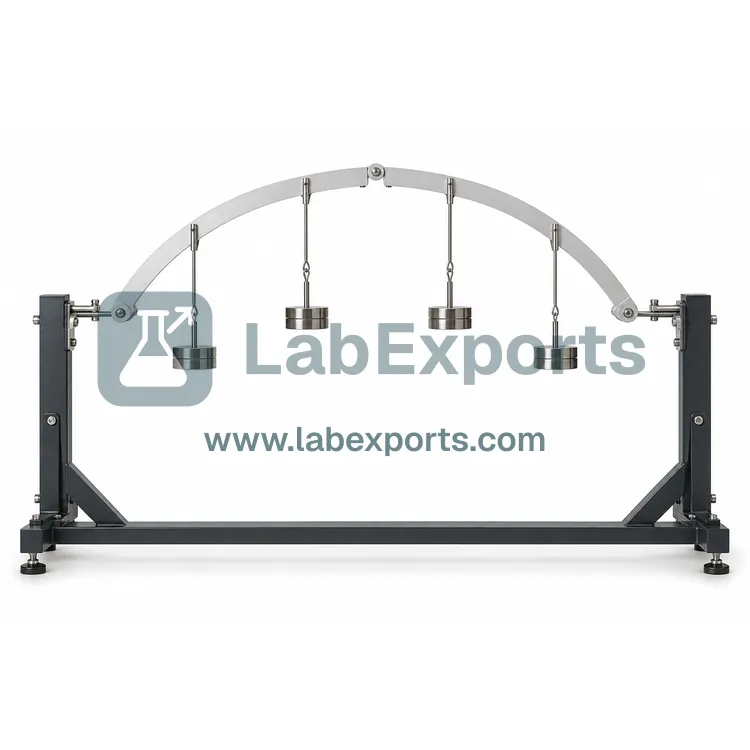

Bridges are often constructed as three-hinged arches. For statics labs; quotes on request.

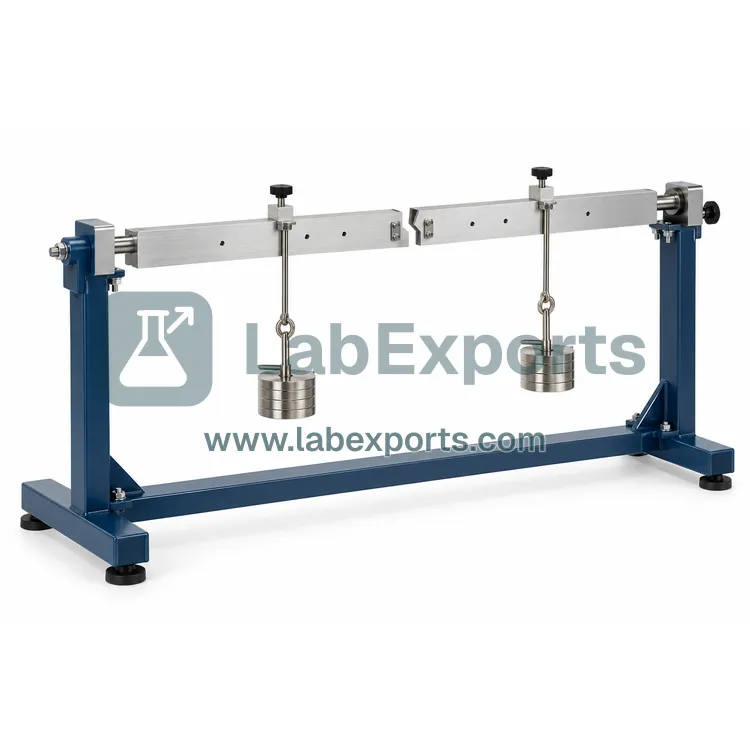

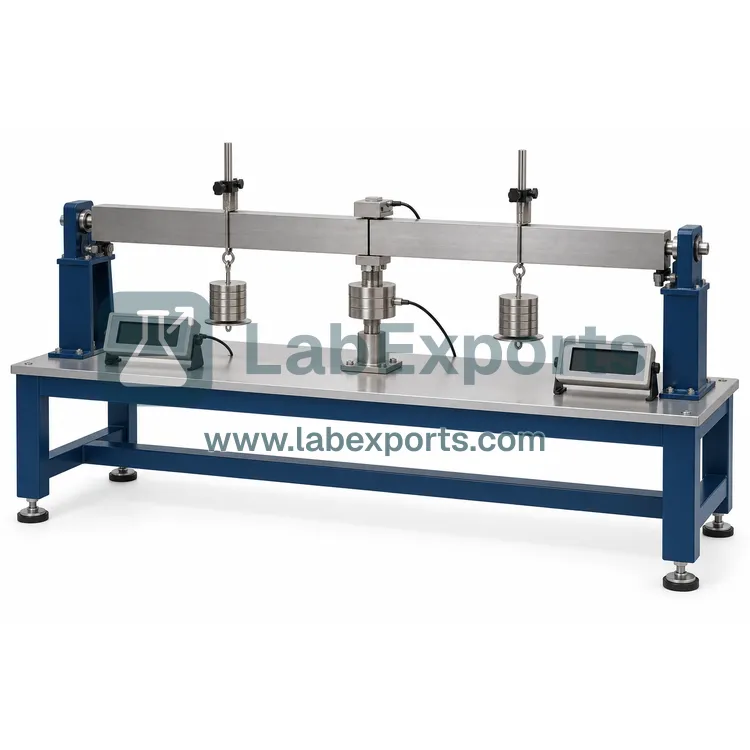

Beam on Two Supports Shear Force Diagram; consists of a beam mounted on two supports which is subjected to point loads; the beam is cut at one point.

Shear Force and Bending Moment Diagram: statics observes the effect of forces on a rigid body, ignoring any possible deformations which may occur in the…

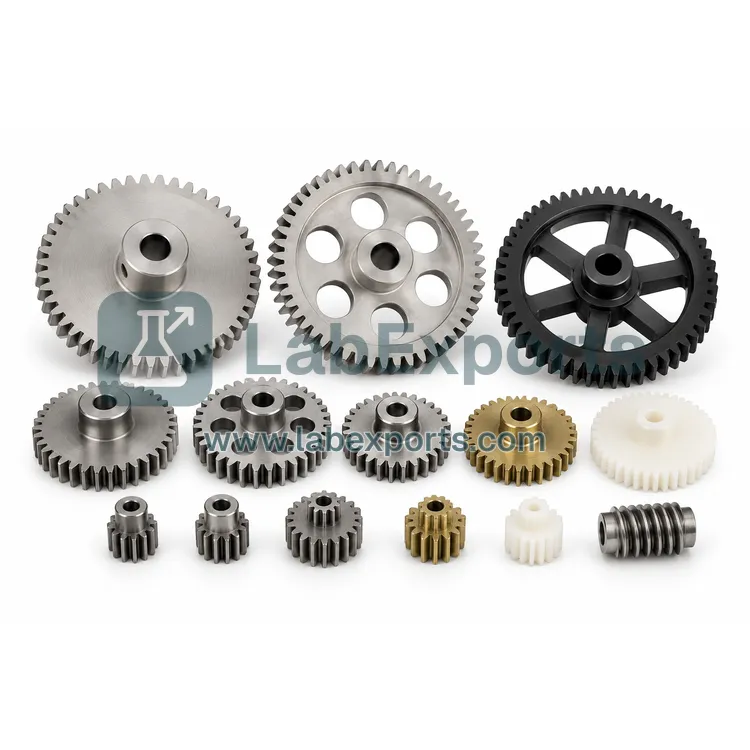

Supplementary Set Gear Wheel: extends the scope of experiments which can be performed with Fundamentals of static: transmission ratio of the revolutions and…

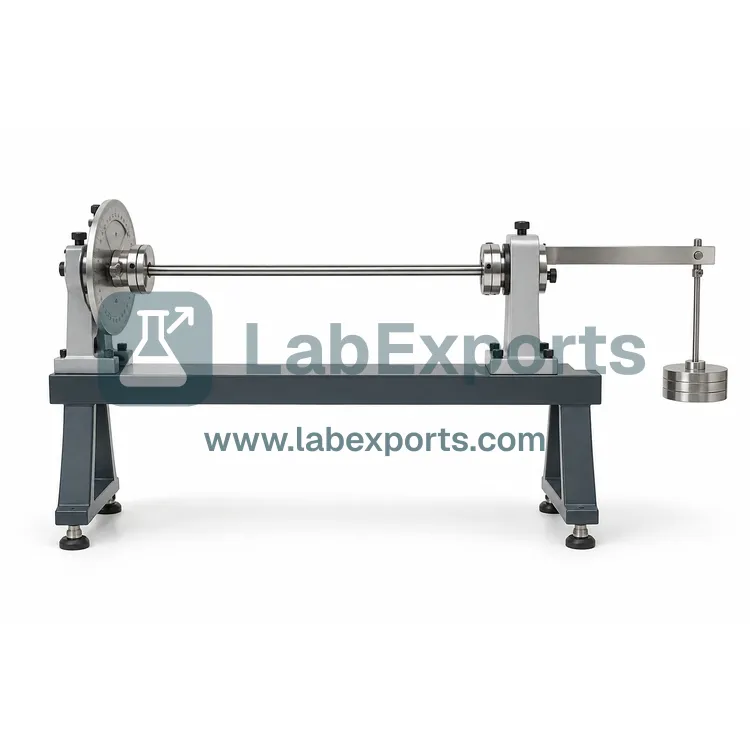

Torsion occurs primarily on axles and drive shafts in motor vehicles and machines.

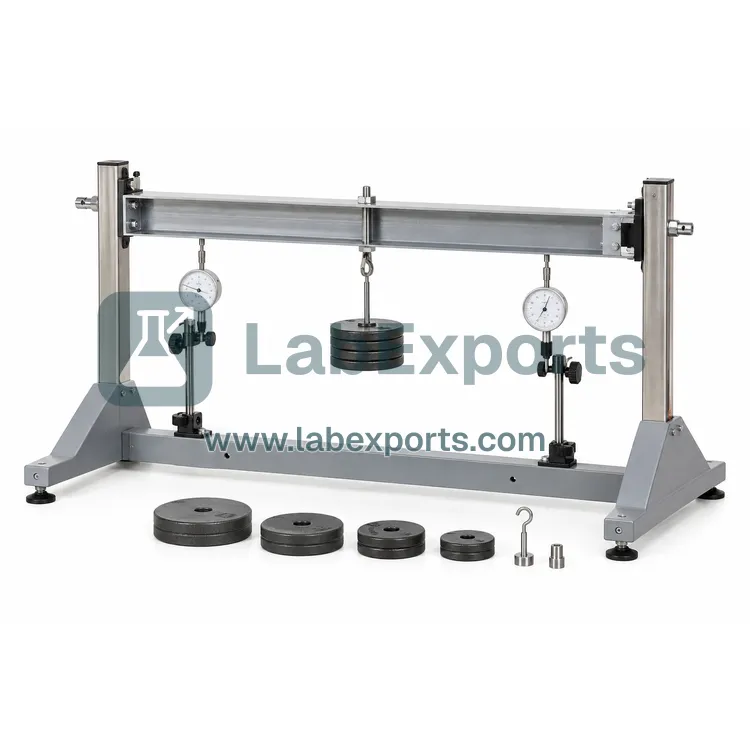

Unsymmetrical Bending: symmetrical bending of a beam - also known as uniaxial bending - occurs when the load plane coincides with one of the main axes of the…

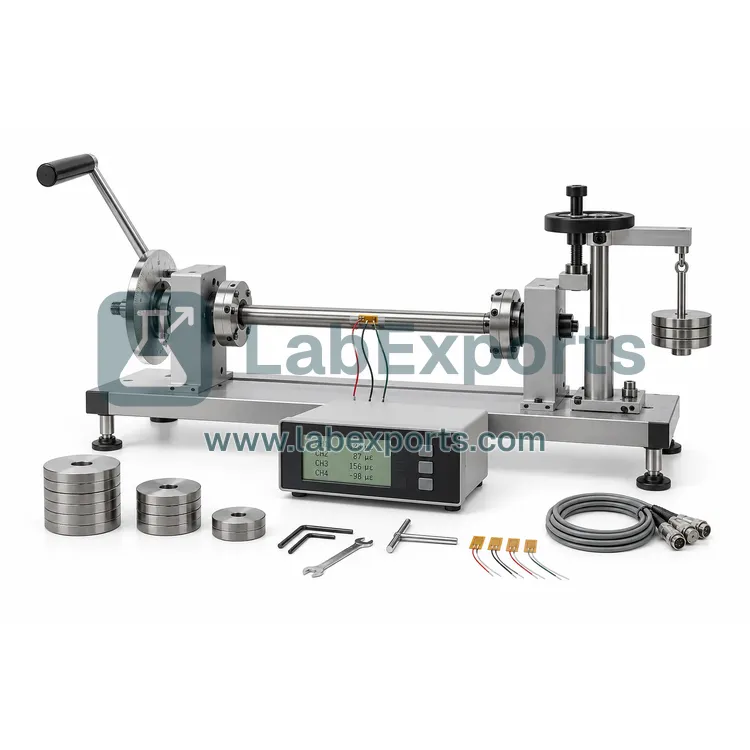

Verification of Stress Hypotheses: stress hypotheses are applied in the science of the strength of materials when calculating comparative stresses where…

Strain gauges are used extensively in sensor systems to detect forces, moments and deformations.

Measurement using strain gauges is the most important method of measuring mechanical strain.

In experimental stress and strain analysis, strain gauges are used to determine stresses and strains in components and structures.

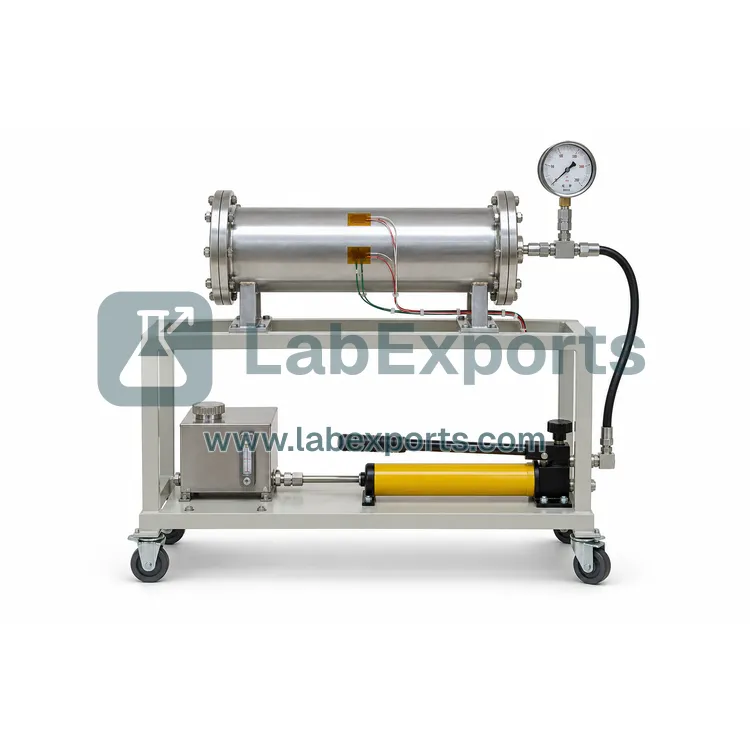

Stress and Strain Analysis Thin Walled Cylinder: the findings obtained from the experiments using demonstrate the calculation and design methods for pipes…

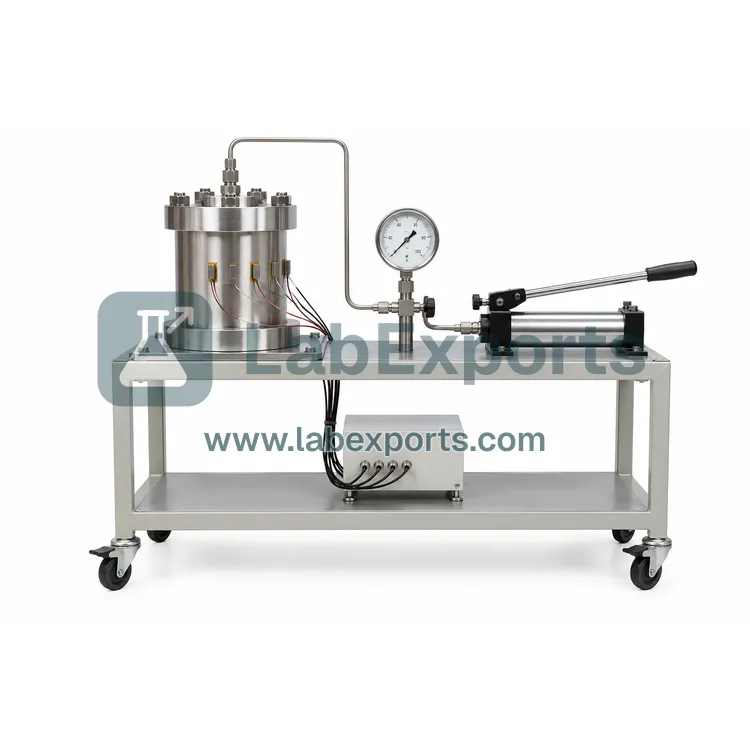

Stress and Strain Analysis Thick Walled Cylinder: in contrast to thin-walled vessels, when designing thick-walled vessels allowance must be made for an…

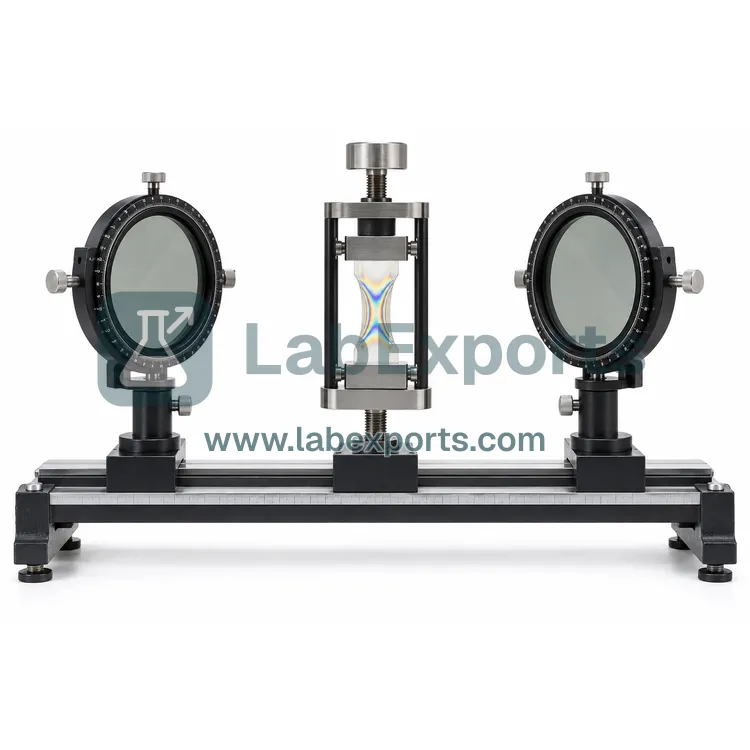

Photoelasticity is a tried and proven method of analysing and recording mechanical stresses and strains in components.

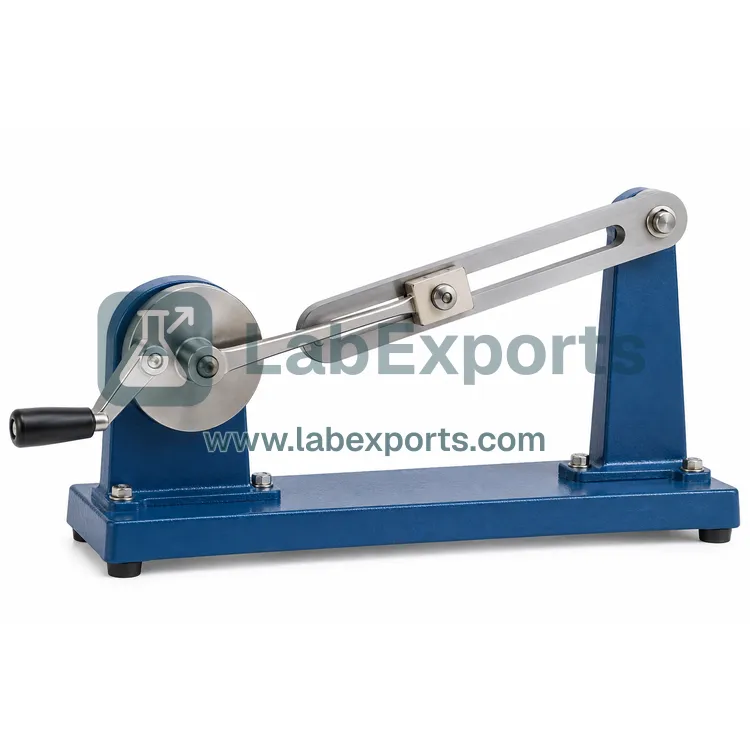

Slotted Link Apparatus: the experimental unit is used to generate and investigate pure harmonic reciprocating motion.

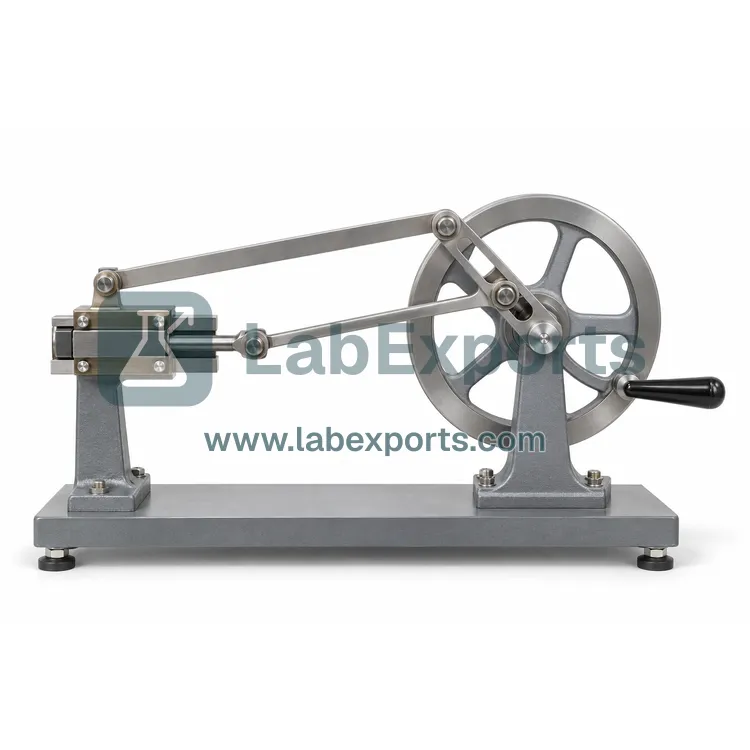

Whitworth's quick return is used to generate uneven reciprocating motion with slow feed and quick return.

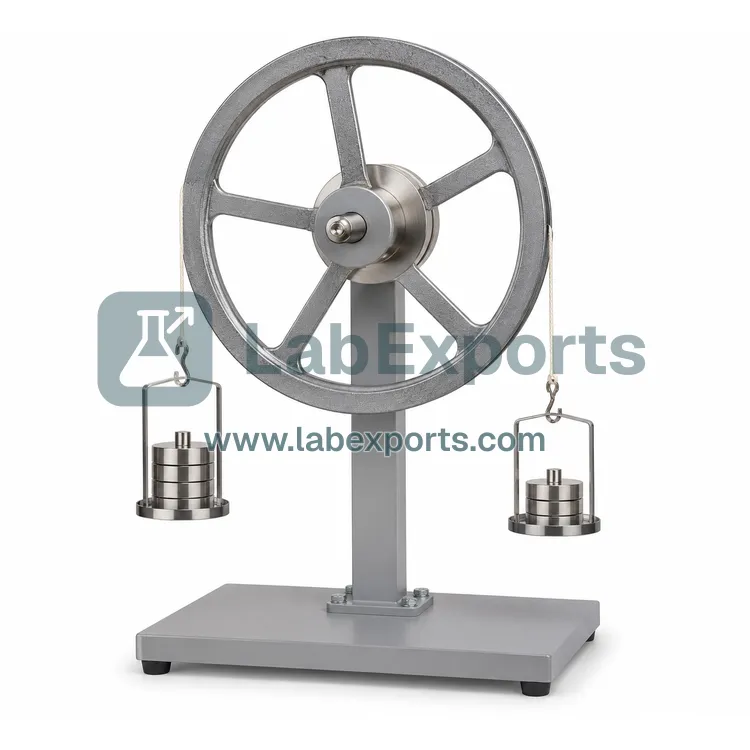

Wheel and Axle Apparatus: the model demonstrates in experiments the laws on the formation of an equilibrium of moments in static systems.

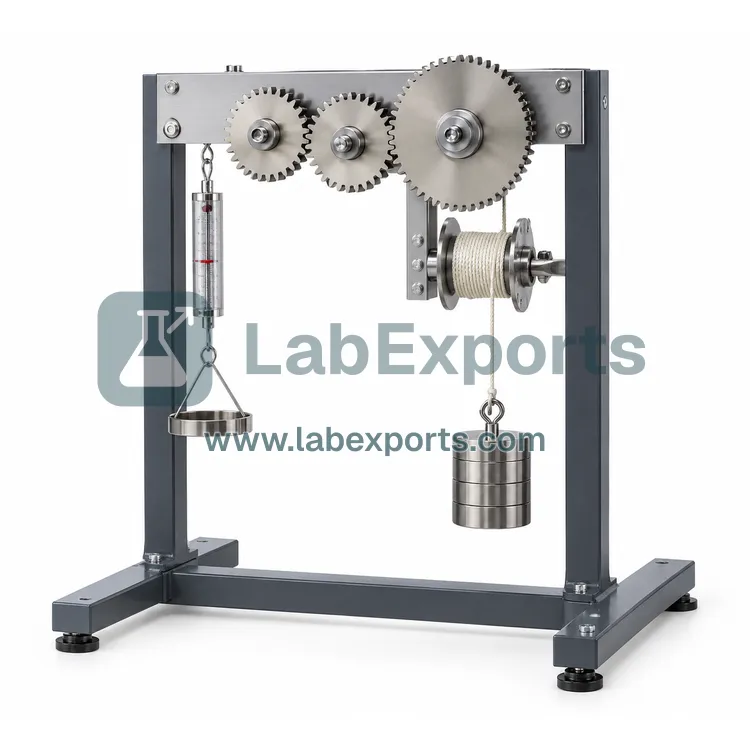

Spur Gear Lifting Apparatus: the mechanism demonstrates the relationship between the ratio of the number of teeth on spur gears and the transmission ratio of…

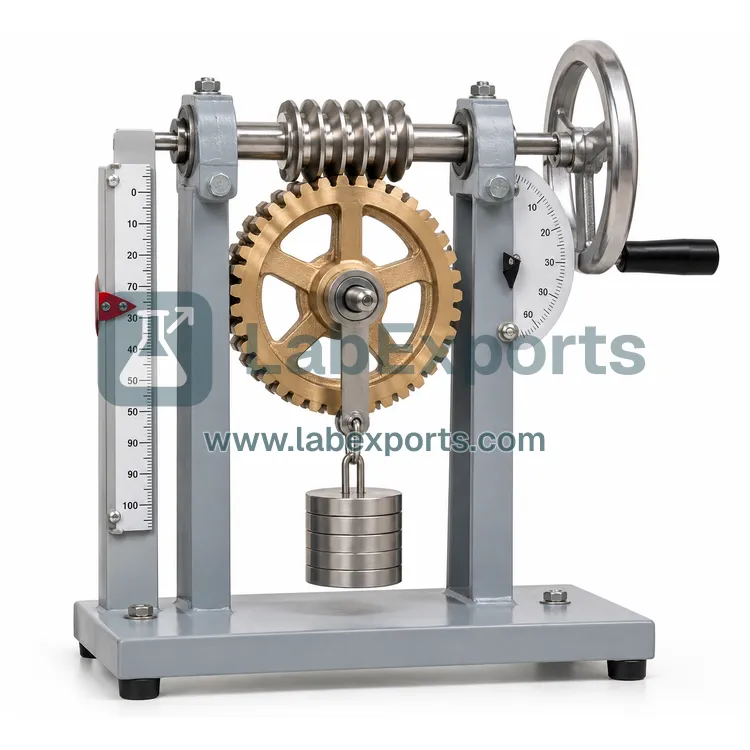

Worm and Wheel Apparatus: the permits investigations of the torques and the efficiency of the gear unit; the transmission ratio of the gear can be determined.

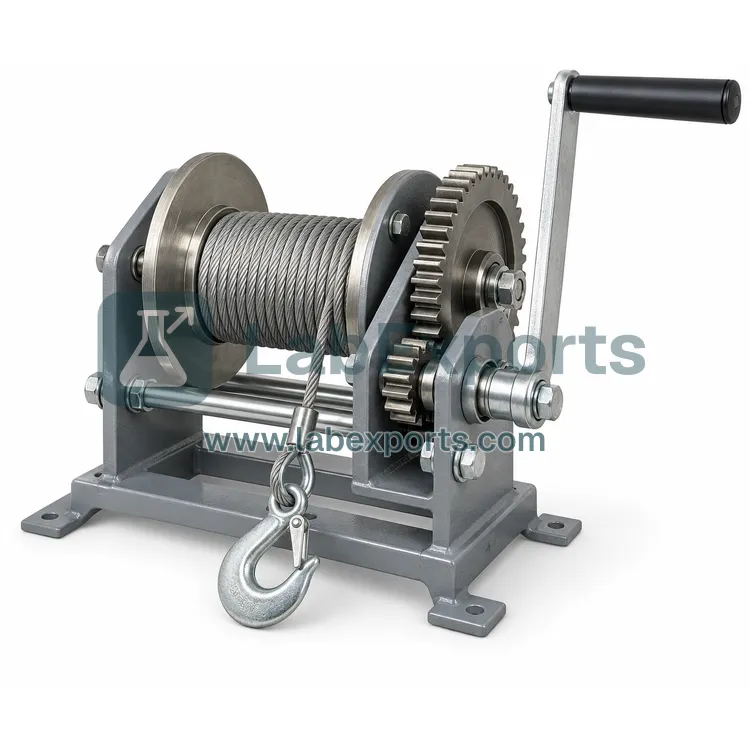

The allows to study a winch concerning its lifting velocity and its load transmission.

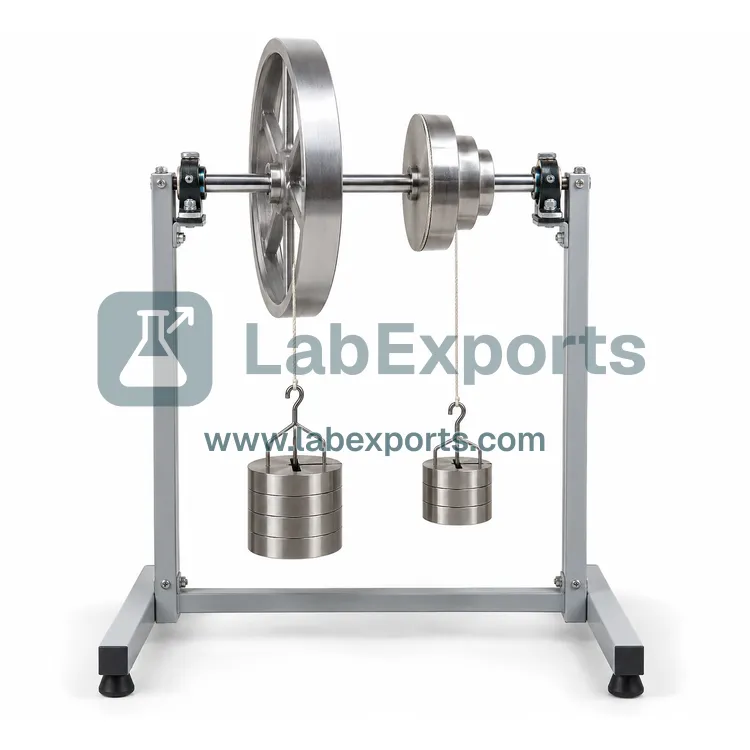

Wheel and Differential Axle Apparatus: the model demonstrates the conditions of equilibrium on a differential pulley block.

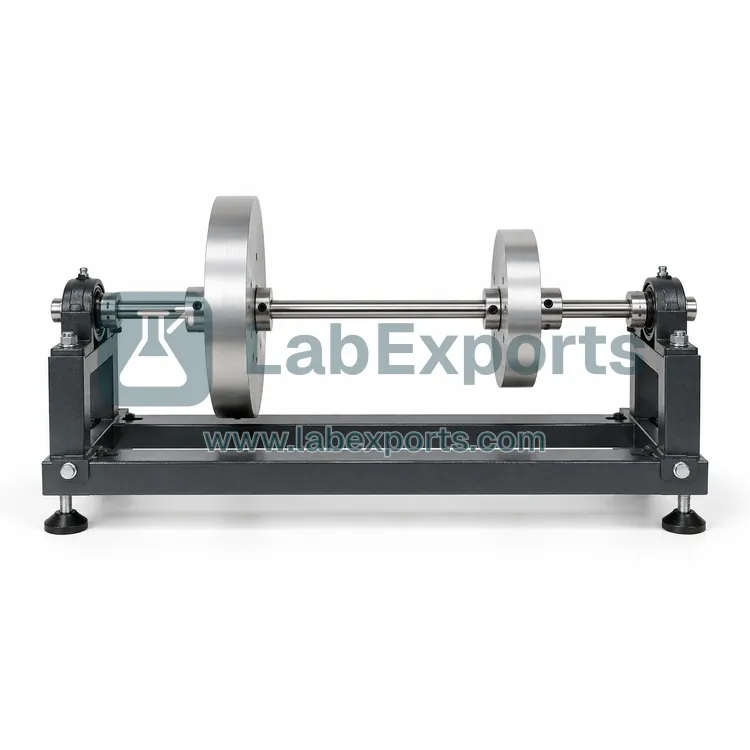

Torsional Vibration Apparatus: the model enables rotary vibration on torsion bars to be investigated; the model consists of a wall mounted base frame made of…
